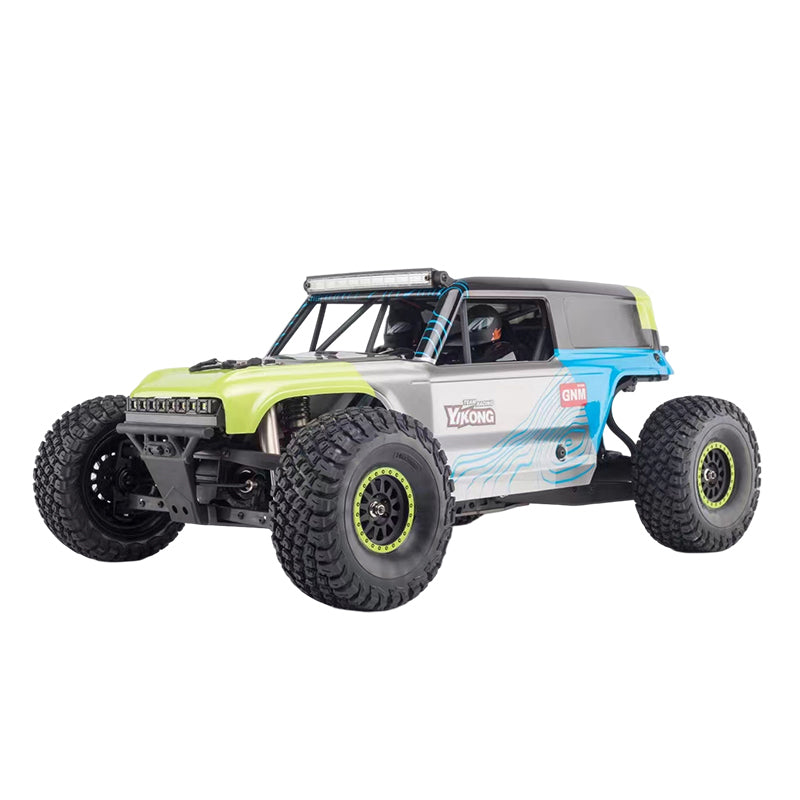

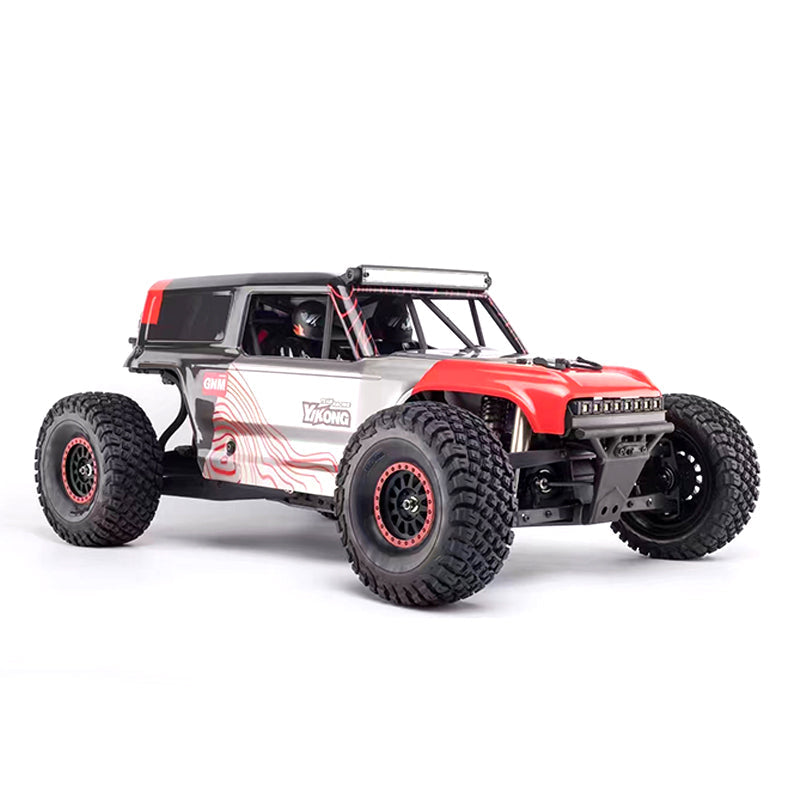

YIKONG YK4073 1/7 TB7 4WD Desert RC Truck

YIKONG YK4073 1/7 TB7 4WD Desert RC Truck

I. Basic Information

• Brand: YIKONG
• Model: YK4073
• Name: YIKONG YK4073 Trailbreaker TB7 1/7 4WD Desert RC Truck
• Scale: 1:7
• Colors: red, blue

II. Specification Parameters

1. Vehicle size: 640×379×265mm
2. Weight: 5.9kg
3. Wheelbase: 425mm
4. Tire diameter/width: 146/56mm
5. Battery compartment size: 181×47.5mm
6. Driving mode: 4WD
7. Gear ratio: 1:14.6
8. Suspension: Independent front suspension with a solid axle and differential at the rear.

III. Electronic Configuration of YIKONG YK4073 RC Truck

• Motor: 4274 1600KV brushless motor.
• Servo: Standard equipped 30KG metal gear servo.
• Electronic speed controller (ESC): Hobbywing MAX 8 150A/950A waterproof ESC, supporting 3S - 6S lithium batteries.
• Transmitter: Standard equipped 5CH remote controller with gyroscope.

IV. Special Design of YIKONG YK4073 RC Truck

1. Tires: Highly realistic racing tires, equipped with 17mm hexagonal wheel connectors.

2. Chassis: The newly designed aluminum main chassis and upper deck create a completely new three-layer design, providing a lower center of gravity and excellent handling characteristics.
3. Transmission and Gears: CNC aluminum center differential case with 63T/1.0 module high-strength steel spur gear; compatible with 30KG class jumbo-size servo or 25KG class standard servo, fully machined 33/13T module 1.25 spiral steel gear.

4. Suspension and Shock Absorption: Front and rear suspensions are equipped with a total of 8 extra-long stroke aluminum shock absorbers, equipped with progressive springs.

5. Driveshaft: The driveshaft is made of fully machined heavy-duty steel.

6. Body: Impact-resistant one-piece PC body fixed at multiple positions on the roll cage.

V. Accessories of YIKONG YK4073 RC Truck

• 1X RC Car
• 1X Transmitter
• 1X Manual

Product accessories do not include charger and battery, need to be purchased separately.
