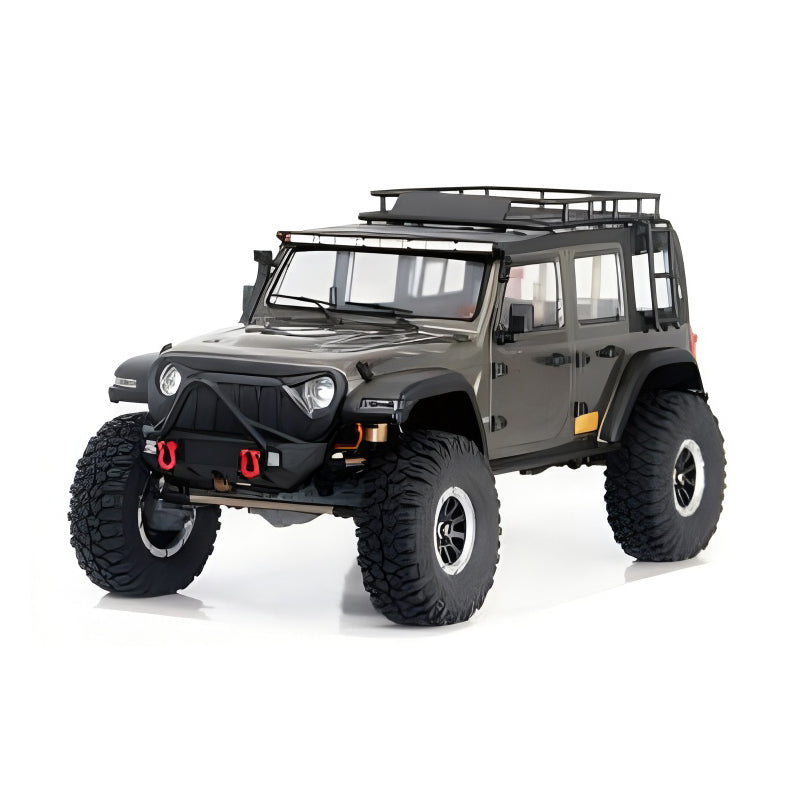

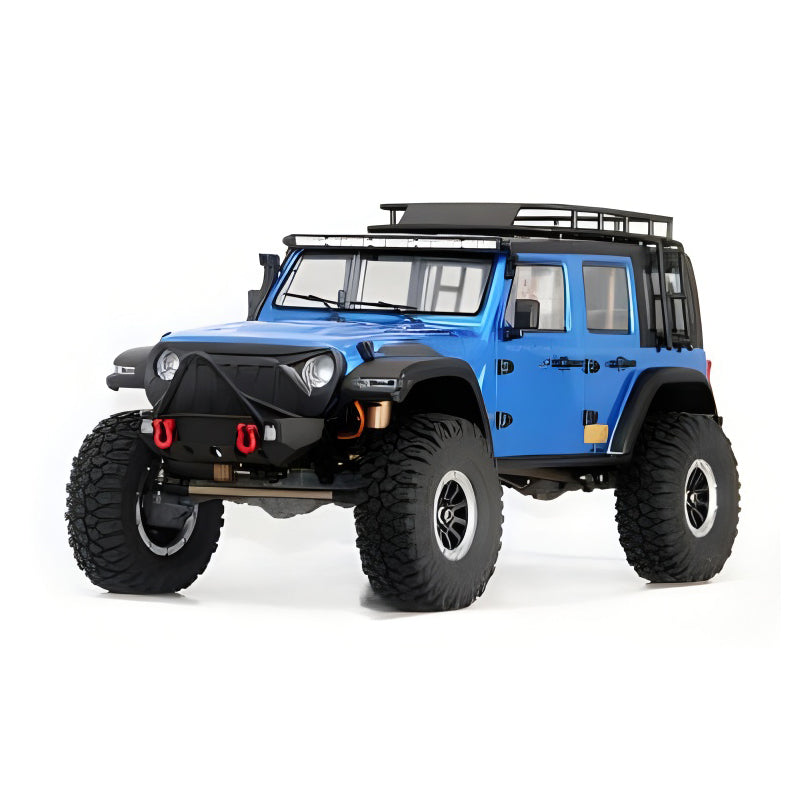

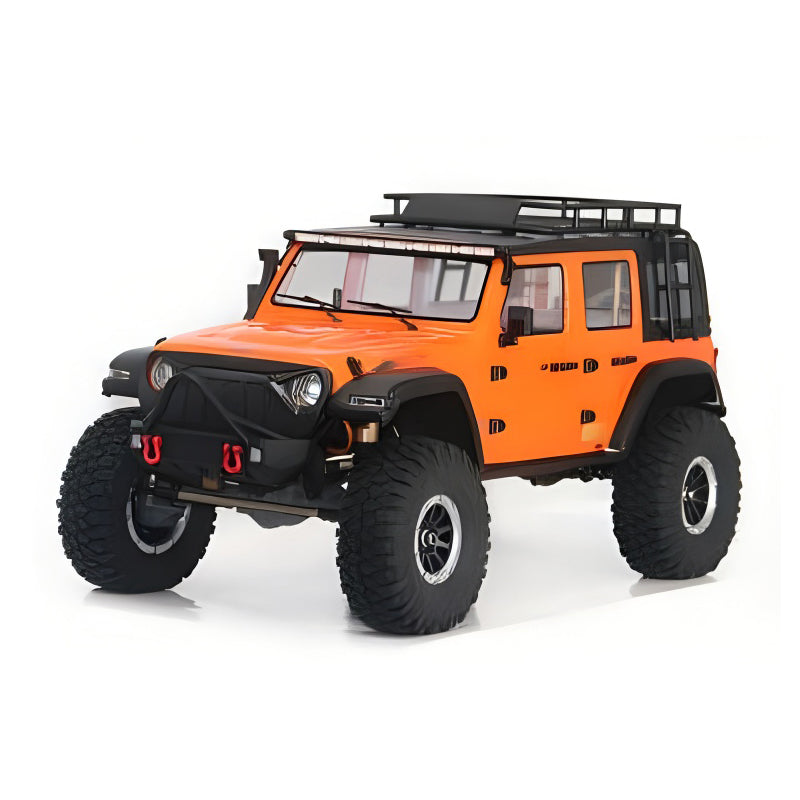

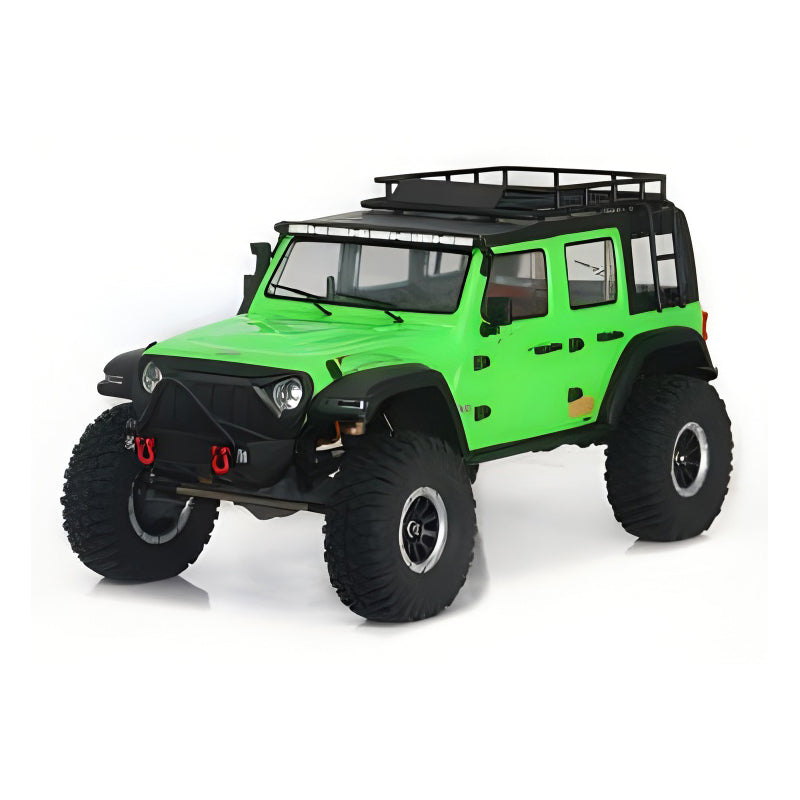

YIKONG YK4102 1/10 4WD Climbing RC Crawler

YIKONG YK4102 1/10 4WD Climbing RC Crawler

Brand: YiKong | Model: YK4102

1. Overview

• Brand: YIKONG
• Model: YK4102
• Scale: 1:10
• Name: YIKONG YK4102 1/10 4WD Climbing RC Crawler
• Features: Simulation design, off-road performance, remote differential lock.

2. Dimensions and Specifications

• Size: 550mm x 240mm x 248mm.
• Weight: 3.0 kg.
• Wheelbase: 340 mm.
• Minimum ground clearance: 60 mm.
• Tire and wheel diameter: 110 mm / 62 mm.

3. Internal Components

• Electronic Speed Controller (ESC): HobbyWing 60A, waterproof.
• Motor: High-torque 550 brushed motor.
• Servos:
  • 17g servo (high/low speed control).
  • 17g servo (front differential lock).
  • 17g servo (rear differential lock).
  • Fully metal waterproof steering servo, 15kg steering servo.

4. Special Features of YIKONG YK4102 RC Crawler

• Remote differential lock.
• Quick-release magnetic car body shell.
• 5mm CNC aluminum alloy 6061 chassis beam.
• Adjustable aluminum alloy motor mount.
• Two-speed transmission with overload protection.

5. Chassis and Body Functions

• Chassis: CNC aluminum alloy chassis beam.
• Body: Simulation style design with rich details.
• Suspension system: Independent suspension.
• Differential: Locking differential controlled by servos.

6. Lighting and Appearance Features

• Equipped with LED front and rear lights.
• Realistic details including roof racks, functional hoods and tow hooks.
• Multiple color options: blue, orange, green, gray.

7. Electronic Equipment and Remote Controller

• Motor: High-torque 550 brushed motor.
• Electronic Speed Controller (ESC): HobbyWing WP-1060, waterproof.
• Servos: Fully metal waterproof steering servo, digital 15kg steering servo, three 17g servos for differential lock and speed control.
• Remote Controller: Frequency: 2.4 GHz, 6 channels.

8. Accessories of YIKONG YK4102 RC Crawler

• 1x RC Car
• 1x Remote Control
• 1x Manual
• 1x Tool Kit
• 4x Tires

Note: Product accessories do not include charger and battery, need to be purchased separately.
