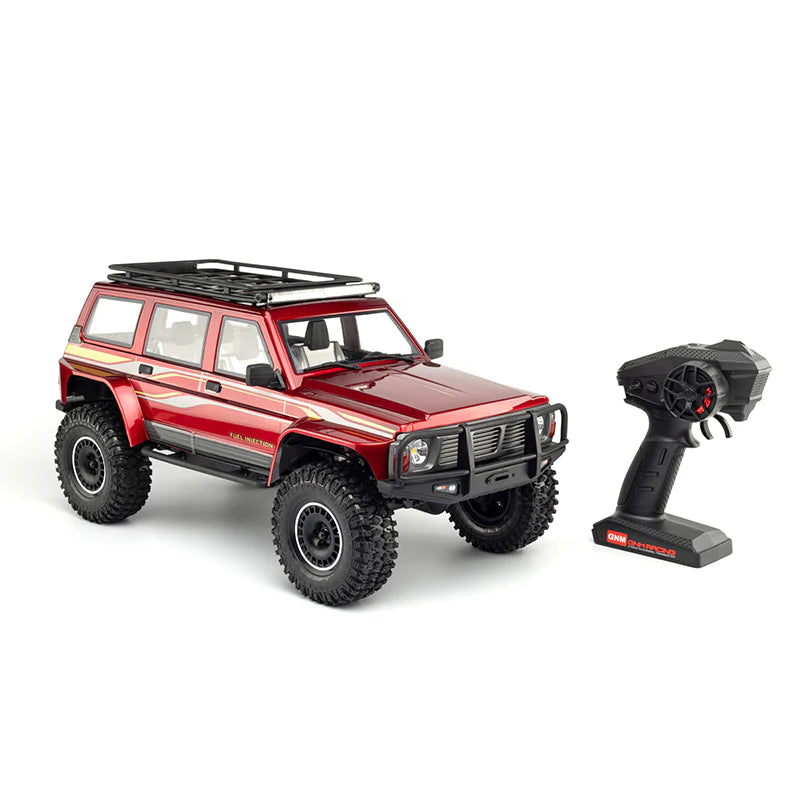

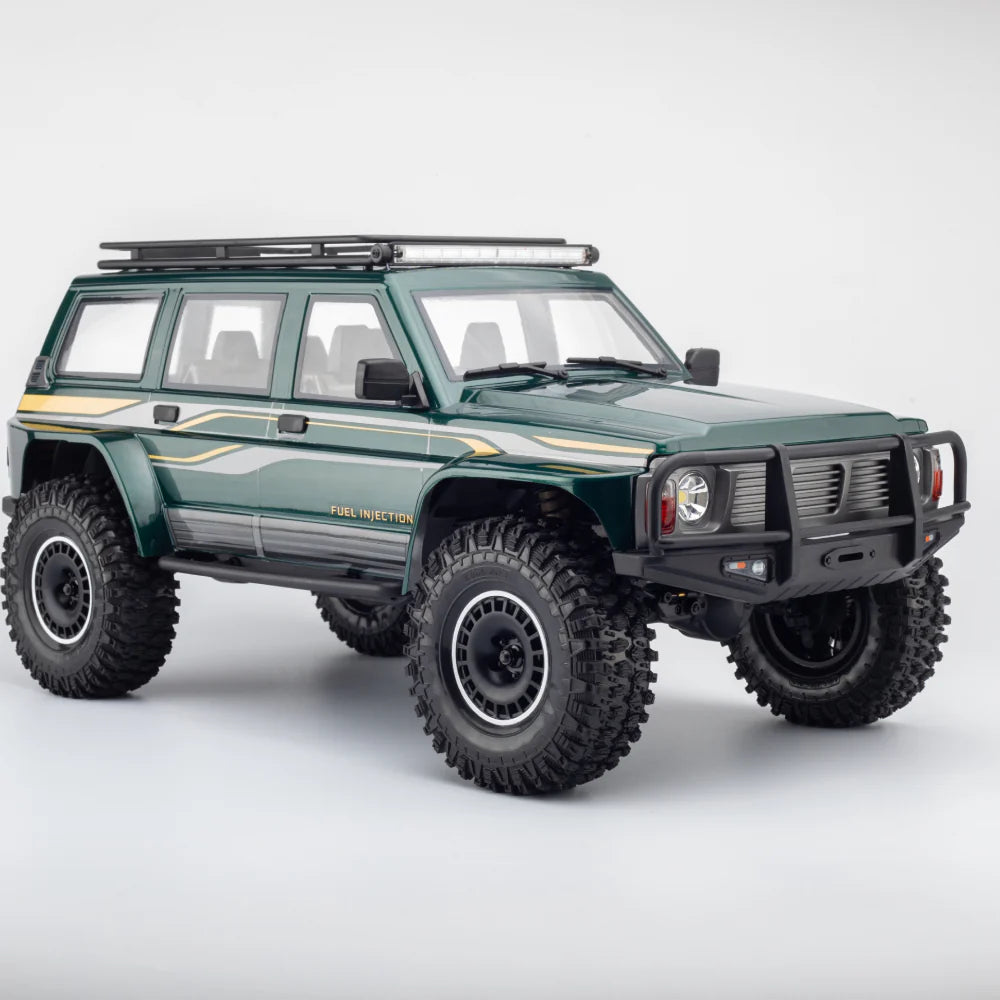

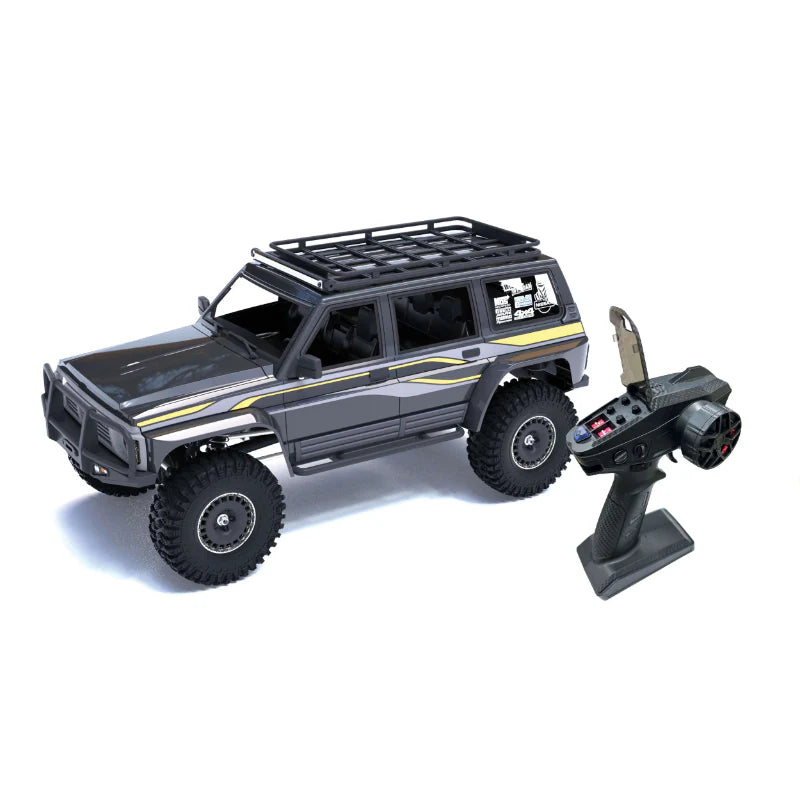

YIKONG YK4107Pro 1/10 4WD Climbing RC Crawler

YIKONG YK4107Pro 1/10 RC Crawler

The YK4107Pro is a 1/10 scale 4WD climbing RC crawler with brushless power system.

Features:

• 1/10 Scale 4WD RC Crawler
• Brushless Power System
• Durable Aluminum Chassis
• Oil-filled Shocks
• High-torque Steering Servo

I. Overview of YIKONG YK4107Pro RC Crawler

• Brand: YIKONG
• Model: YK4107Pro
• Name: 1:10 Scale Remote - control Start Tank - turn Crawler
• Colors: Hydro Blue

Features: In 2025, a new LCG chassis design is launched. It has a remote - control start function, and the innovative DIG function enables the tank - turn function.

II. Specifications of YIKONG YK4107Pro RC Crawler

1. Weight:3.1kg
2. Wheelbase: 325mm
3. Track Width: 267mm
4. Ground Clearance: 65mm
5. Tire Diameter/Width: 116/42mm
6. Dimensions: 521mm * 247mm * 267mm
7. Approach Angle: 58°
8. Departure Angle: 52°
9. Steering Angle: 40°

III. Features of YIKONG YK4107Pro RC Crawler

1. Ultra - low Center of Gravity Gearbox Design
2. High - performance Servo: A 25KG high - torque metal - gear steering servo with a newly - designed servo buffer protection device.
3. Tank - turn Function: Press the Channel 4 button to activate the tank mode, and the rear differential lock will open automatically to achieve the tank - turn.
4. Optional Parts: Optional front and rear counterweight blocks for weight adjustment.
5. Remote - control System:
   1. A 2.4GHZ 10 - channel transmitter with optional driving modes.
   2. Remote - control front and rear differential locks, two - speed ratio (two - in - one electronic speed controller, high - low speed switching).
6. Other Components:
   1. Professional - level climbing tires, 2100kv brushless outer rotor motor, full - metal gears and ball bearings, front and rear portal axle design, front universal joint.
   2. Full - metal hydraulic shock absorbers with remote - control lighting system for the whole vehicle.
   3. The towing force is adjustable via the remote - control switch, with simulated interior, 1.2mm PC car body (transparent windows).
   4. The front bumper is replaceable.

IV. Gear Ratio Parameters

• The low - speed and high - speed gear ratios corresponding to different motor gears are listed (see the table for details).

V.About the package of YIKONG YK4107Pro RC Crawler

• 1x RC Car (Complete kit, but, not including the battery and charger.)
• 1x Remote Controll

VI.Optional Accessories (purchase separately)

• Car Battery (Not Included):2S-3S high-capacity lithium battery is recommended.
• Charger (Not Included):It is recommended to balance the charger for lithium batteries.
