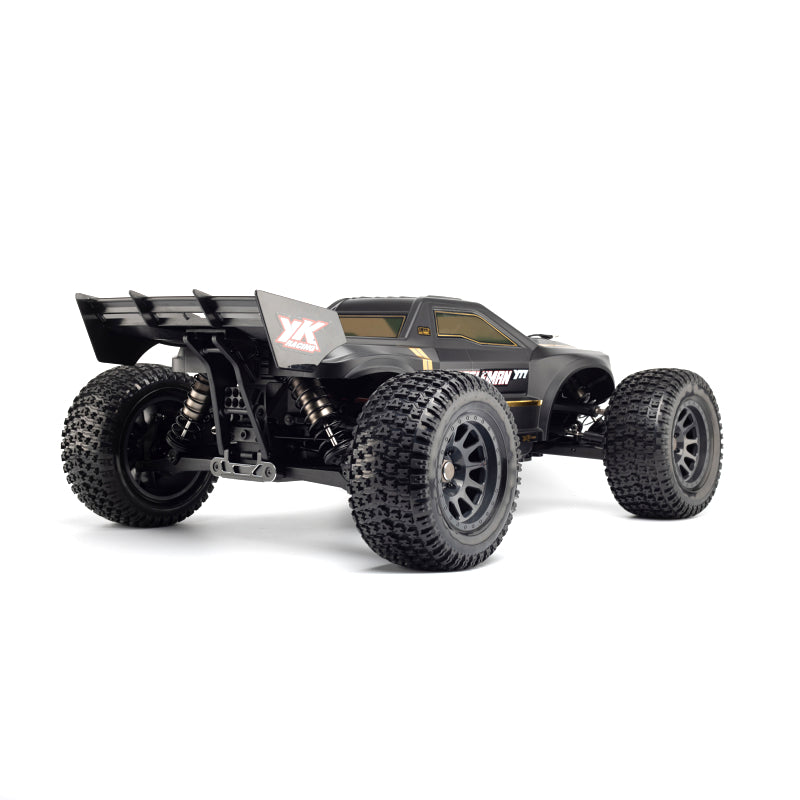

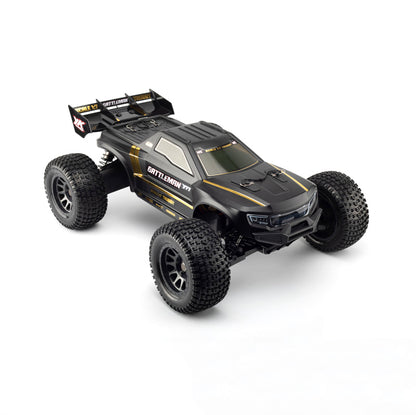

YIKONG YK9071/PRO 1/7 4WD Racing Trucks RC Car RTR

YIKONG YK9071/PRO 1/7 4WD Racing Trucks RC Car RTR

Brand: YiKong | Model: YK9071

ote: Cancelling an order for this product will incur a 2% handling fee, so please purchase with caution. Please keep in contact via email after payment, or contact us to confirm availability before placing your order. The preparation time is 3–6 business days.

Actual shipping costs vary by region. Please contact us for the exact shipping fee.

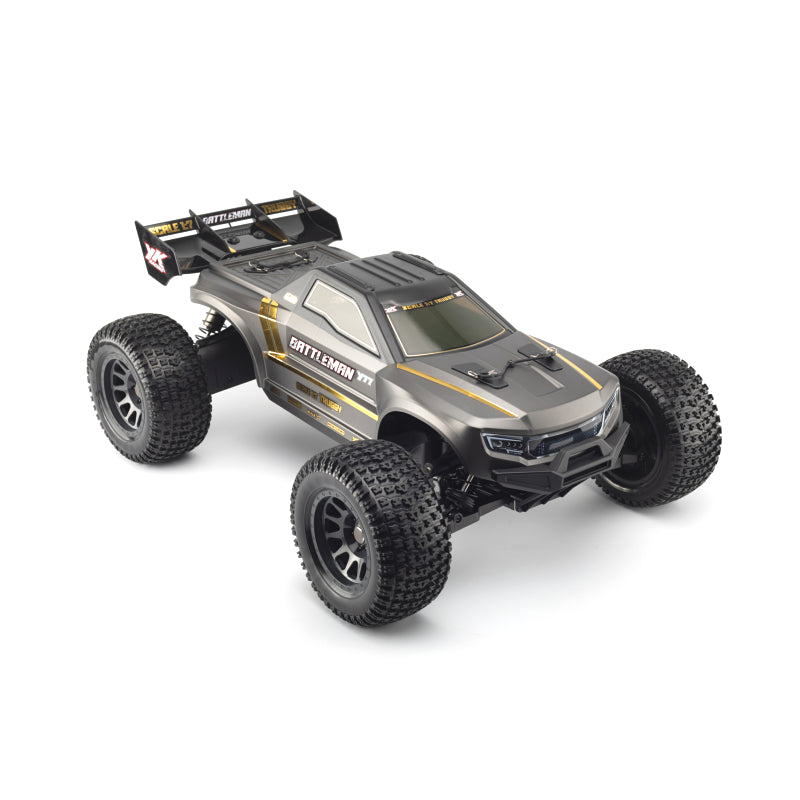

YIKONG BATTLEMAN YT7 / YT7 PRO

Model: YIKONG YK9071 | 1/7 Scale 4WD Racing Truggy

Overview: The YIKONG BATTLEMAN YT7 series is a large-scale 1/7 4WD racing truggy designed for high-intensity off-road performance. Featuring a reinforced three-layer chassis, centralized drivetrain layout, and support for up to 6S power, it delivers outstanding durability, balance, and control for extreme bashing.

General Specifications

1. Brand / Model: YIKONG YK9071

2. Versions Available: YT7 / YT7 PRO
3. Scale: 1/7
4. Drive Type: Full-Time 4WD Racing Truggy

Color Schemes

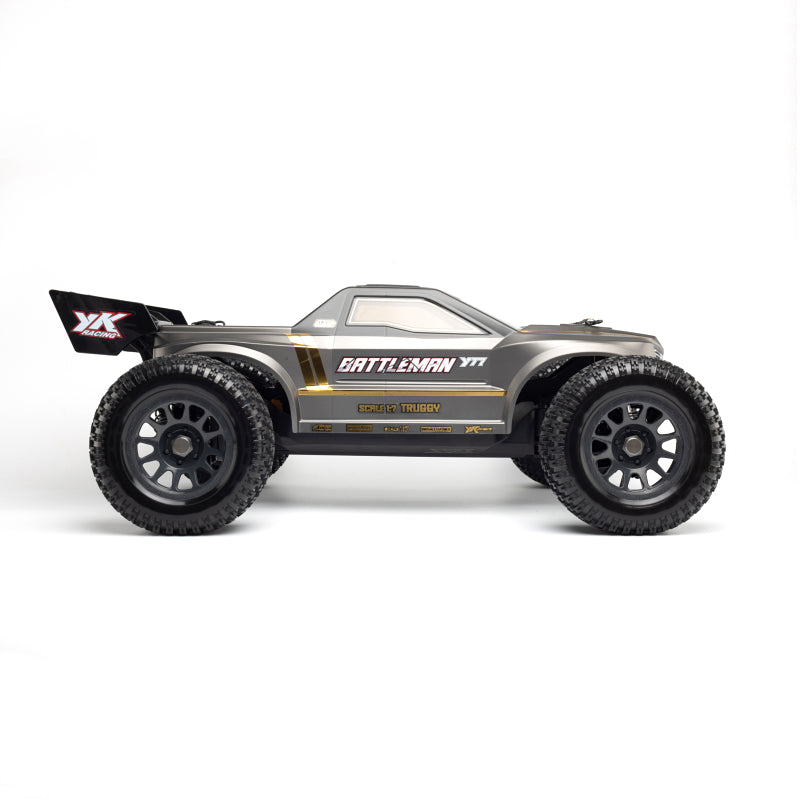

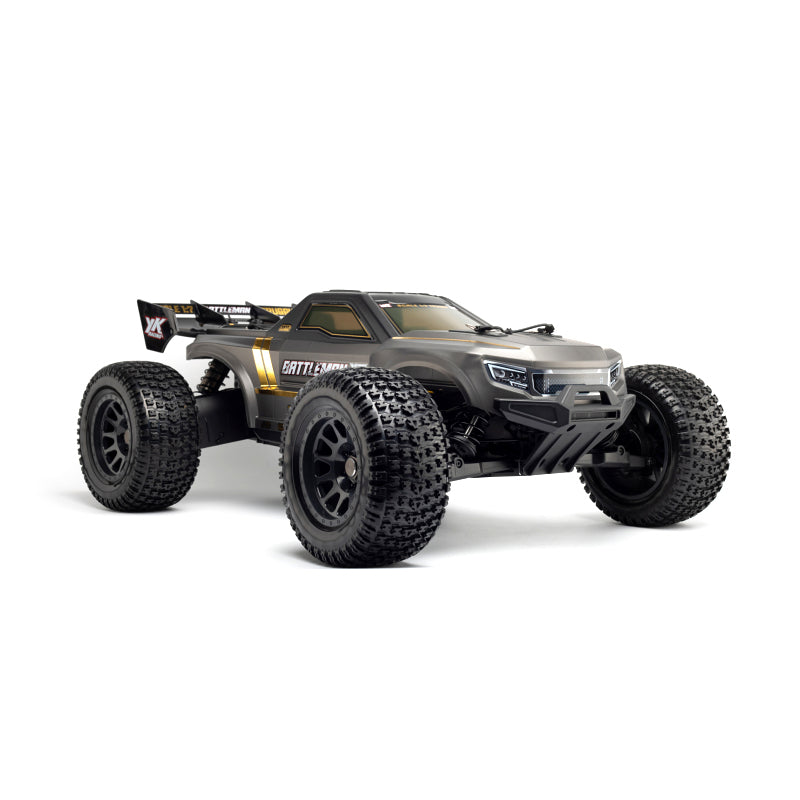

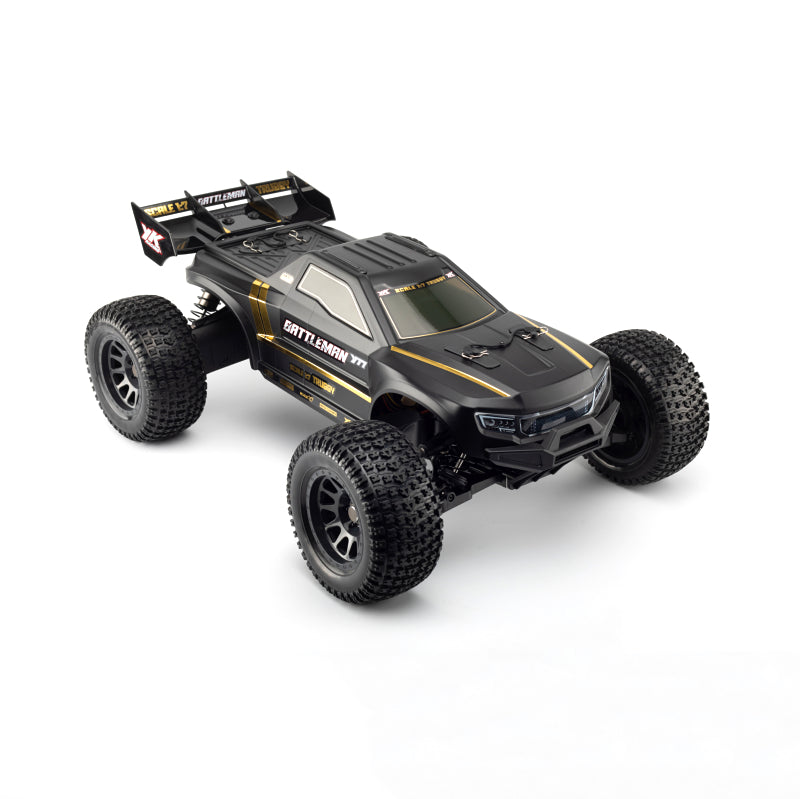

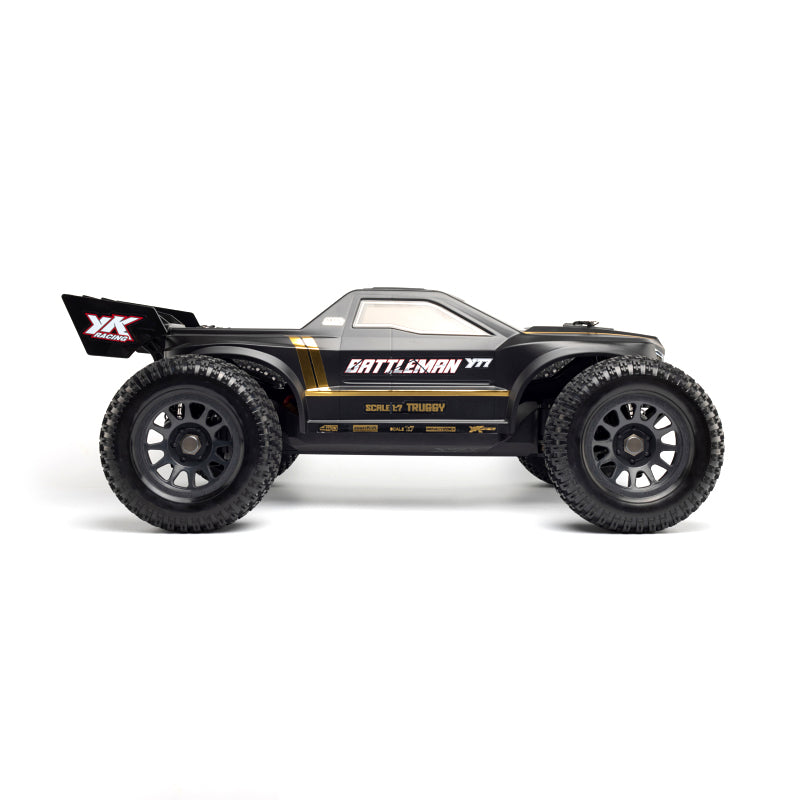

1. YT7 PRO: Matte Black & Gold / Matte Grey & Gold
2. YT7: Blue-Black / Magenta-Black / Green-Black / Orange-Black / Yellow-Black

Powertrain & Electronics

YT7 PRO Setup vs YT7 Setup

1. 4985 Brushless Motor (1050KV) | 4585 Brushless Motor (1050KV)
2. 160A Waterproof Brushless ESC (MAX6) | 150A Waterproof Brushless ESC (MAX8 PRO)
3. 60KG High-Torque Servo

Drivetrain Highlights

1. Full-time 4WD system
2. Front and rear CVD driveshafts (4 total)
3. CNC-machined steel transmission gears (non-powder metallurgy)
4. Front and rear differential system
5. Two-stage front and rear gearbox design for higher efficiency and reduced differential size

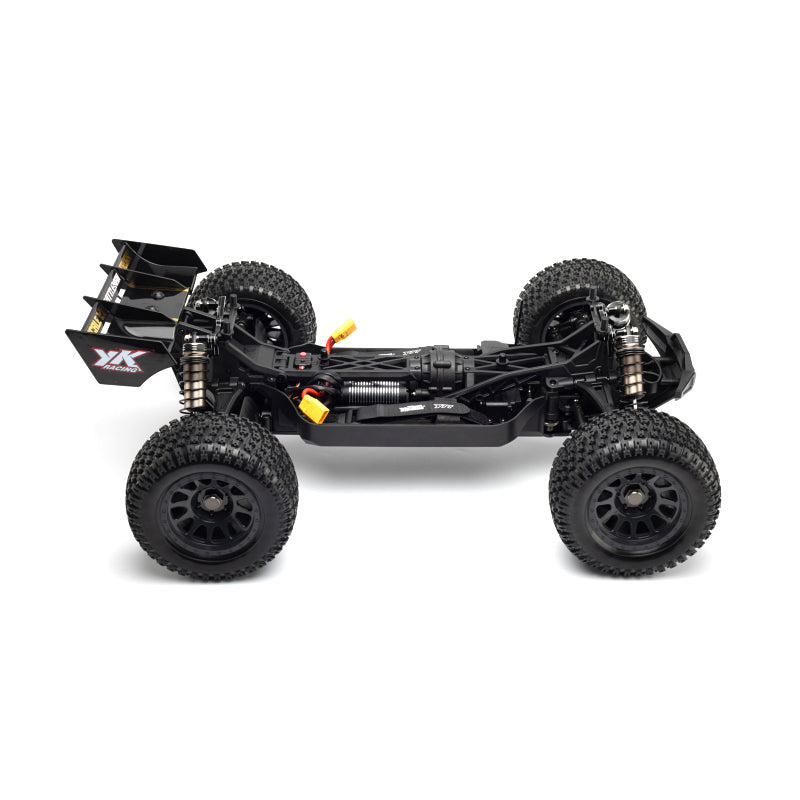

Chassis, Suspension & Structural Design

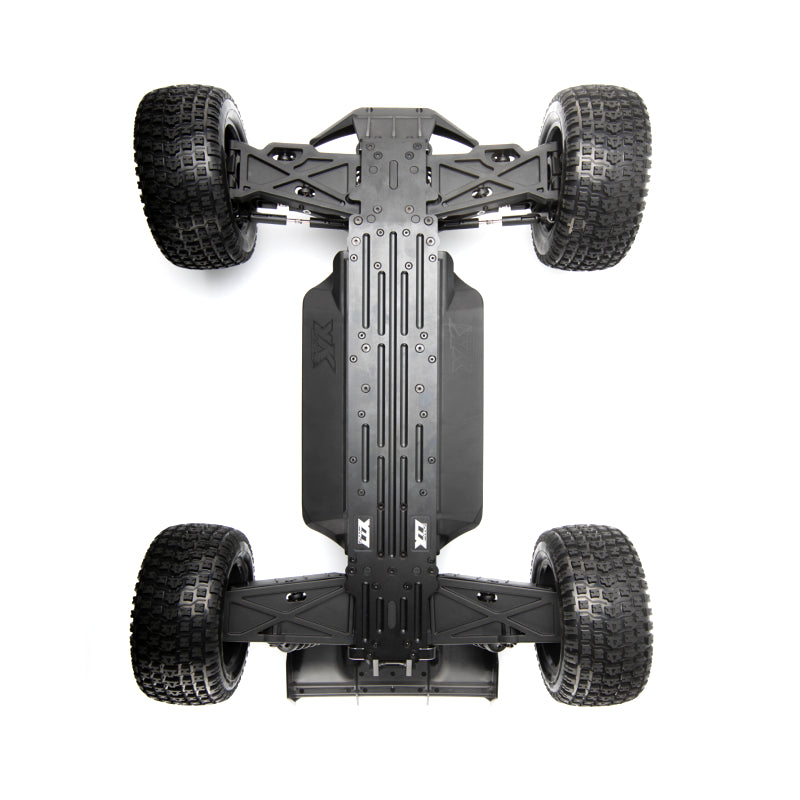

1. Innovative three-layer geometric chassis structure for optimized weight distribution and superior strength

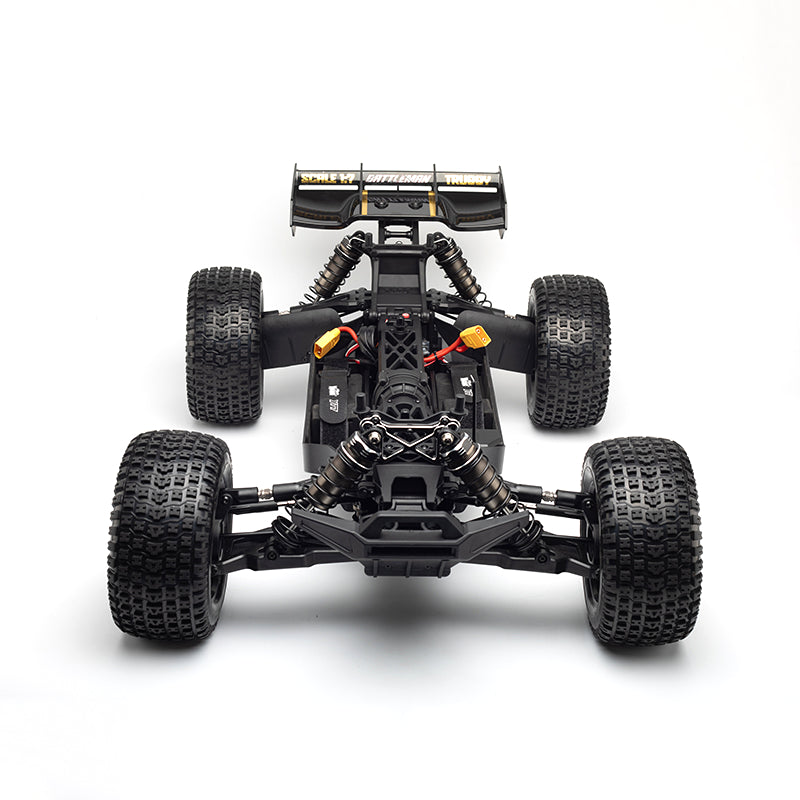

2. Centralized layout of ESC, motor, servo, and gearboxes between the main chassis and reinforced upper deck
3. Dual symmetrical battery trays on both sides for balanced weight distribution
4. High-strength CNC aluminum chassis paired with high-toughness nylon side panels for impact absorption and electronics protection
5. One-piece upper deck with angled bracing to significantly enhance rigidity
6. Additional independent reinforcement between chassis plate and front gearbox
7. Supports up to 6S LiPo power for extreme off-road use
8. Thickened heavy-duty nylon front and rear suspension arms
9. CNC aluminum shock absorbers: Front: 142mm, Rear: 150mm

Performance & Handling Features

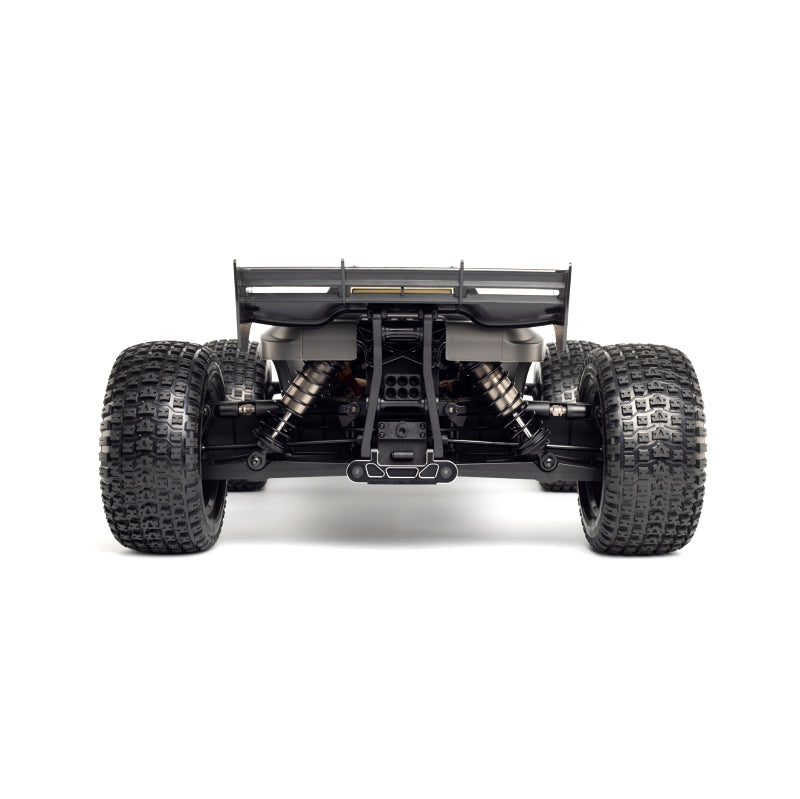

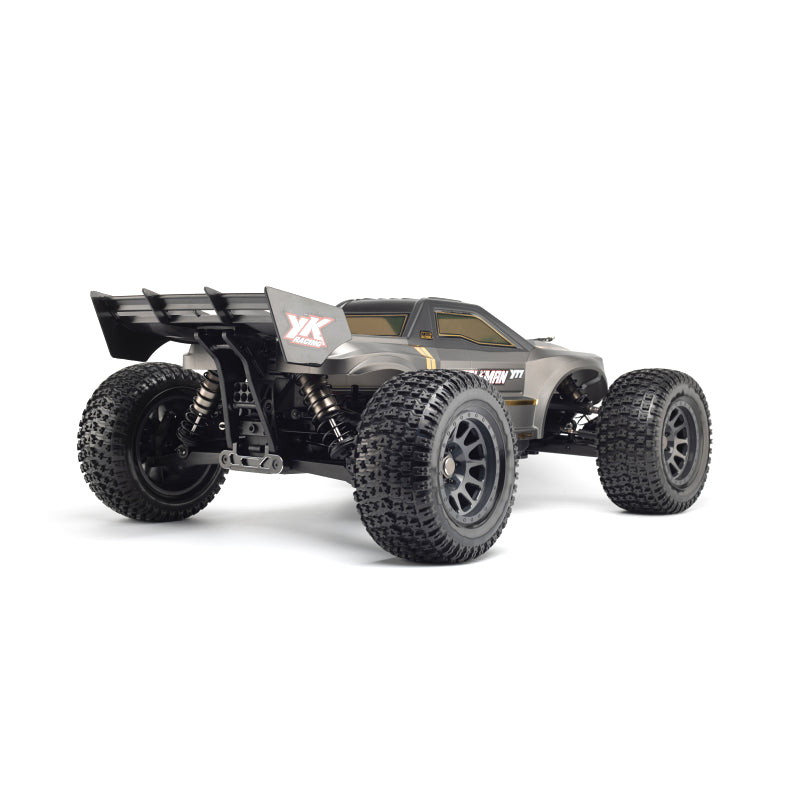

1. High-downforce one-piece rear wing for improved stability at speed
2. Front steering arms reinforced with internal steel T-bushings
3. Rear lower suspension arm pins with dual ball-joint design for smoother articulation
4. Extensive use of CNC aluminum upgrade components throughout the vehicle
5. CNC aluminum gear mount frame improves drivetrain stability and durability
6. 19mm wheel hex hubs with anti-loosening hex nuts to reduce wear and damage

Adjustable Ground Clearance

1. Low Clearance: Optimized for flatter surfaces and improved stability
2. High Clearance: Designed for rough terrain and jump landings

Package Contents

1. 1 × YT7 or YT7 PRO 1/7 Scale 4WD Racing Truggy (RTR)
2. 1 × Transmitter
3. 1 × User Manual

Note: Battery and charger are not included.
